Product Description

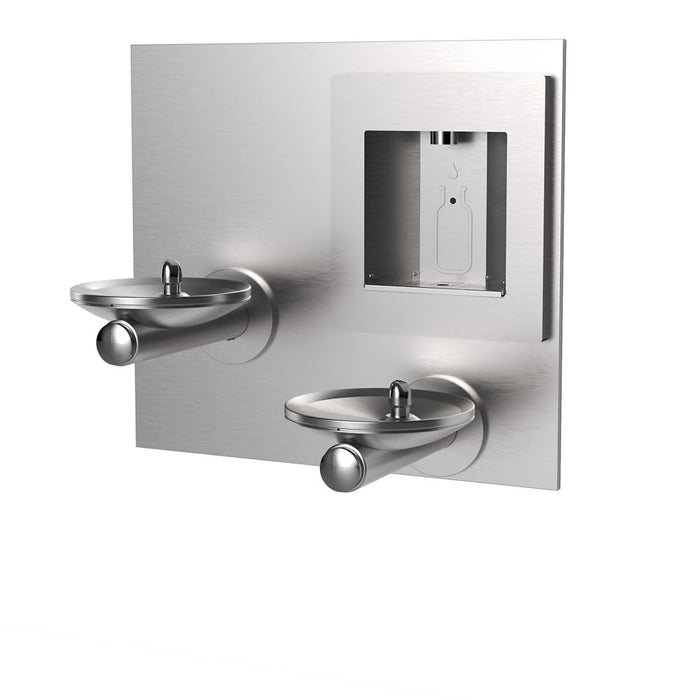

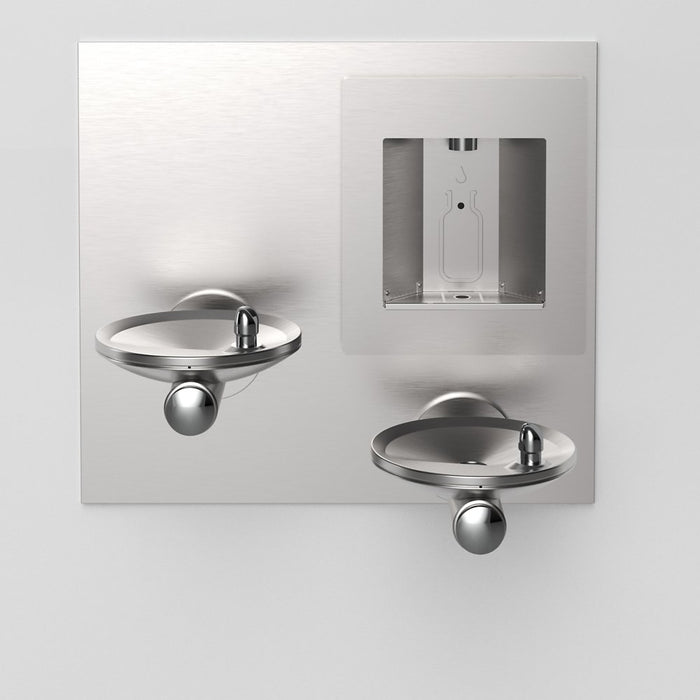

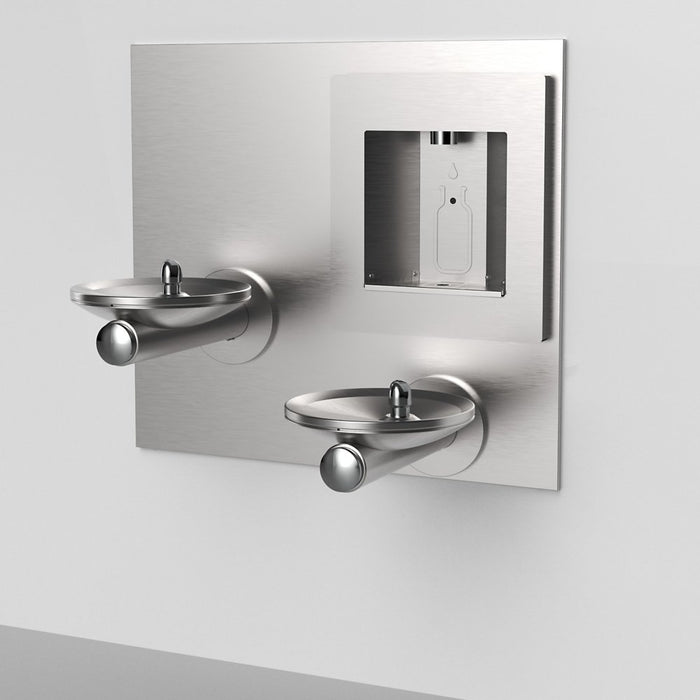

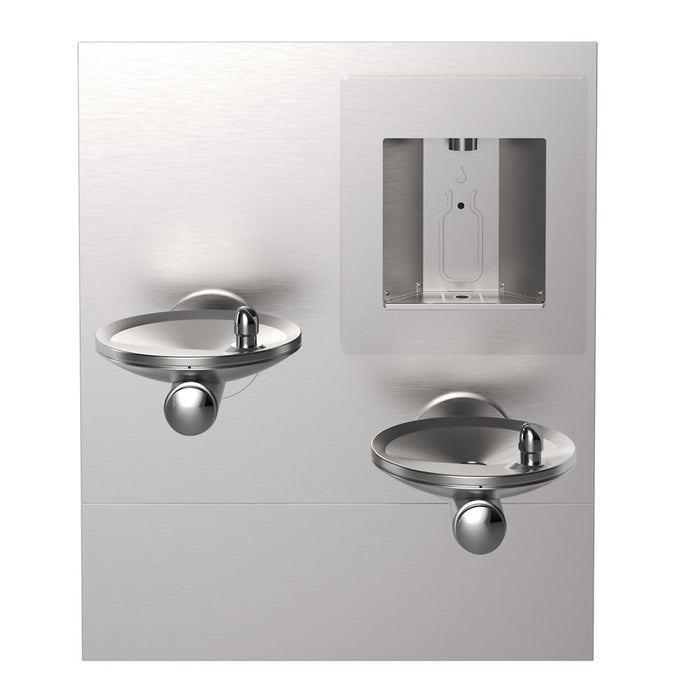

If you're outfitting a space where durability and design both matter, the Elkay EZLSSN-EDFPBMV117K is your go-to solution. Built for high-traffic environments, this unit combines a sensor-activated bottle filler with a bi-level vandal-resistant SwirlFlo® fountain, delivering a sleek, low-maintenance hydration experience people can trust and appreciate.
This is hydration without compromise — no-touch operation, ADA-compliant access, and laminar flow for splash-free filling, all inside a vandal-resistant stainless steel frame designed for indoor or outdoor use. The integrated in-wall mounting system keeps the look seamless, modern, and professional.
Whether you’re outfitting a school, airport, government building, or commercial facility, this is the unit that makes you look smart before, during, and after installation.
Features
✓ Touchless bottle filler for clean, hands-free operation
✓ Includes in-wall SwirlFlo® mounting frame for architectural appeal
✓ Dual-level fountains with push-button activation, easy for all ages and abilities
✓ Fill rate of 1.0 GPM with laminar flow to reduce splash and mess
✓ Vandal-resistant bubblers with chrome-plated hood guard for added safety
✓ Real drain system keeps standing water out and cleanliness in
✓ ADA compliant for accessibility
✓ Rated for both indoor and outdoor installation
✓ Stainless steel construction built to handle wear, weather, and impact
Specifications
| Feature | Details |
|---|---|
| Brand | Elkay |
| Model Number | EZLSSN-EDFPBMV117K |
| Type | Wall-Mounted Bottle Filling Station with Bi-Level Fountain |
| Number of Stations | 2 |
| Material | Stainless Steel |
| Activation | Sensor (Bottle Filler), Push Button (Fountains) |
| Chilling Capacity | Non-Refrigerated |
| Filtered | No |
| Power Supply | 115V / 60Hz |
| Mounting Option | Wall Mount (In-Wall Frame Included) |
| Installation Location | Indoor and Outdoor |
| Dimensions | Length: 38-1/2 inches, Width: 19-3/8 inches, Height: 34-5/8 inches |
| Shipping Dimensions | Length: 41 inches, Width: 21 inches, Height: 38 inches |
| Included Components | Bottle Filler (EBWDC00SSC), Fountain (EDFPBV117LWS-NF), Mounting Frame (MFWS202) |
| Certifications | ADA, ICC A117.1, NSF 372, NSF 61, UL 399, ASME A112.19.3, CSA B45.4, CAN/CSA C22.2 No. 120 |
| Country of Origin | USA |
| Ideal For | Airports, Universities, Outdoor Facilities, Public Buildings |
Warranty
Elkay provides a 5-Year Limited Warranty on structural components and a 1-Year Limited Warranty on all other parts.
Return & Refund Policy
Elkay accepts returns within 30 days of delivery on most items, with prior authorization required. All items must be in new, unused condition and shipped freight prepaid. A restocking fee may apply.
To request a return, contact us at (314) 200-1341 or email support@thefountaindirect.com. We'll guide you through the process with Elkay.
