Product Description

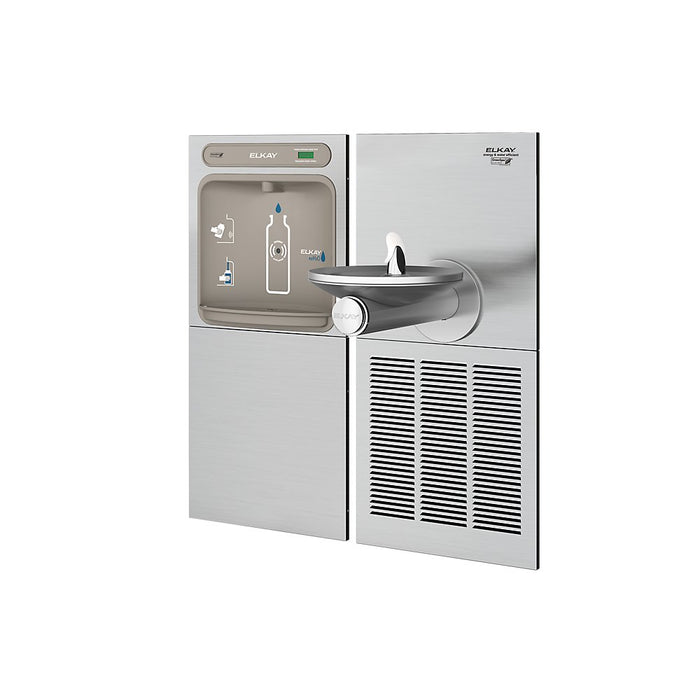

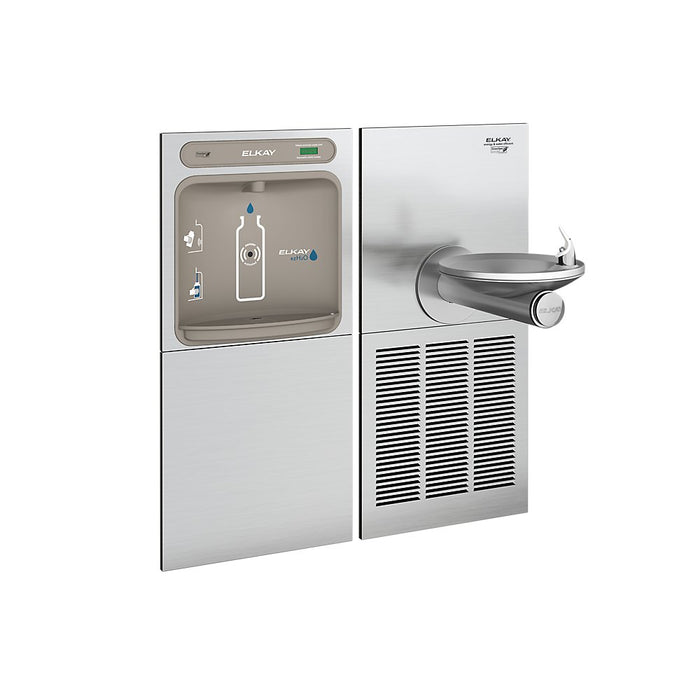

The Elkay EZWS-SFGRN8K is where elegant design meets efficient hydration. This premium SwirlFlo® station combines a sensor-activated ezH2O® bottle filler with a refrigerated, ADA-compliant drinking fountain—giving you a complete indoor hydration hub that looks as good as it performs.
With a powerful chiller that delivers up to 8 gallons per hour and a sleek in-wall installation, it’s perfect for high-traffic, image-conscious spaces like lobbies, offices, or campus buildings. The touchless bottle filler ensures hygienic access to water, while the Flexi-Guard StreamSaver™ bubbler provides a smooth, splash-free stream with antimicrobial protection built in.
If you're serious about hydration, sustainability, and design, this is the no-brainer upgrade.
Features
✓ Sensor-Activated Bottle Filler – Hands-free hydration with 20-second automatic shut-off
✓ SwirlFlo® Design – Elegant contoured basin with in-wall installation for a seamless finish
✓ ADA-Compliant – Bottle filler and fountain are accessible to all users
✓ Flexi-Guard StreamSaver™ Bubbler – Flexible mouth guard reduces injury and microbial buildup
✓ Hermetically Sealed Chiller – Delivers 8.0 gallons of chilled water per hour
✓ Real Drain System – Eliminates standing water to prevent bacterial growth
✓ High-Efficiency Compressor – Reduces energy use without compromising performance
✓ Antimicrobial Components – Silver ion technology keeps surfaces cleaner and safer
✓ Green Ticker™ – Displays number of plastic bottles saved
✓ Indoor Rated – Ideal for upscale indoor installations
Specifications
| Feature | Details |
|---|---|
| Brand | Elkay |
| Model Number | EZWS-SFGRN8K |
| Type | Wall-Mounted Bottle Filler with SwirlFlo® Drinking Fountain |
| Number of Stations | 2 (Bottle Filler + Drinking Fountain) |
| Material | Stainless Steel |
| Activation | Sensor (Bottle Filler), Push-Button (Fountain) |
| Chilling Capacity | 8.0 GPH (Gallons Per Hour) |
| Filtered | No |
| Power Supply | 115V / 60Hz |
| Mounting Option | Wall Mount (Inwall Frame/Plate) |
| Installation Location | Indoor |
| Dimensions | Length: 39-1/2 inches, Width: 19 inches, Height: 40-13/16 inches |
| Shipping Dimensions | Length: 28-1/4 inches, Width: 62-1/4 inches, Height: 46 inches |
| Shipping Weight | 127 lbs |
| Included With Product | Bottle Filler (EZWSMDC), Fountain (ERPBGRND8C), Chiller (ECH8GRN), Mounting Frames (MF100 + MFWS100) |
| Certifications | ADA, ICC A117.1, NSF 372, NSF 61, UL 399, GreenSpec, ASME A112.19.3, CSA B45.4, CAN/CSA C22.2 No. 120 |
| Country of Origin | USA |
| Ideal For | Corporate Offices, Schools, Universities, Government Buildings |
Warranty
Elkay offers a 5-Year Limited Warranty on the refrigeration system and a 1-Year Limited Warranty on all other components. See Elkay’s official documentation for full coverage details.
Return & Refund Policy
Elkay accepts returns within 30 days of delivery on most items, but authorization is required prior to return. All returns must be in new, unused condition and shipped freight prepaid. A restocking fee may apply, and certain items may be non-returnable depending on their condition or category.
To request a return, contact us at (314) 200-1341 or email support@thefountaindirect.com. We’ll help you coordinate directly with Elkay to ensure proper authorization and handling.
