Product Description

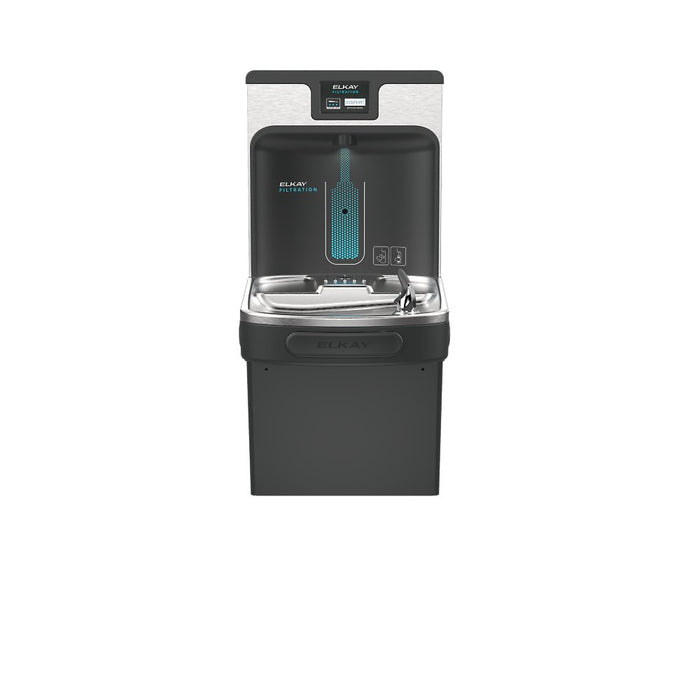

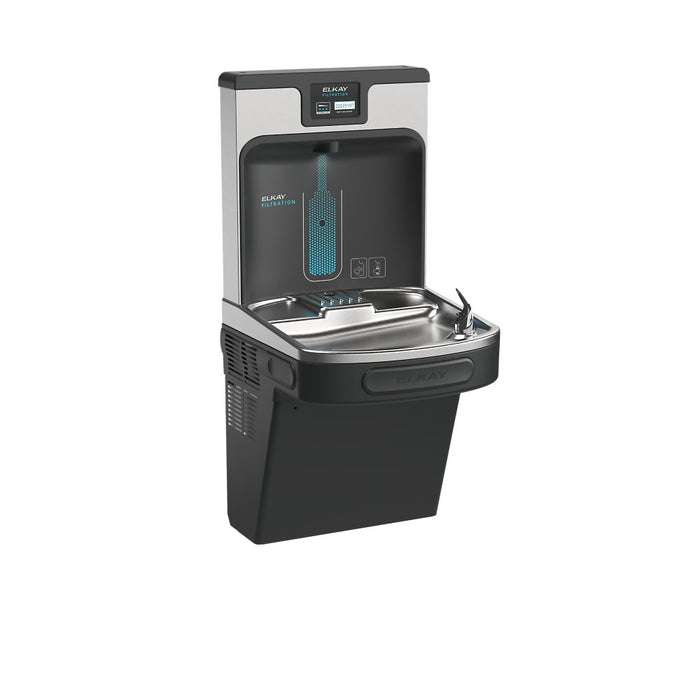

This isn’t just a bottle filler. It’s a cloud-connected hydration system with next-generation filtration, real-time data insights, and a sleek black finish that transforms any space it’s installed in. The Elkay LZS8WSMP-W1 offers sensor-activated bottle filling, quick-change filter access, and advanced lead and microplastic reduction—making it the smartest, safest way to deliver water in schools, offices, and gyms.
With remote filter monitoring, scheduled flush settings, and NSF-certified filtration up to 6,000 gallons, this station saves time, saves bottles, and saves your building from water waste. The drop-down wrapper makes filter swaps take less than a minute. Users get clean, cold water. You get less maintenance, fewer headaches, and total visibility—all from your dashboard.
This unit doesn’t just meet standards—it rewrites them.
Features

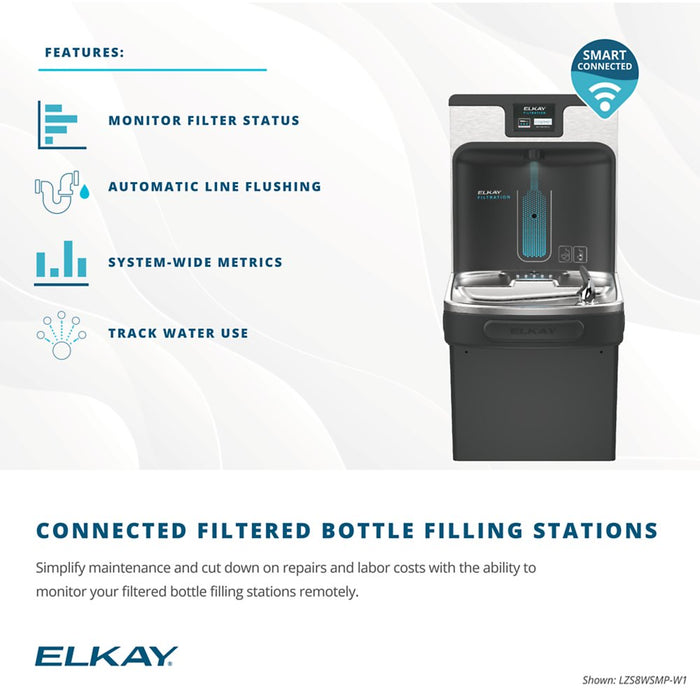

✓ Connected Dashboard – Monitor filter life, track usage, and schedule flushes remotely

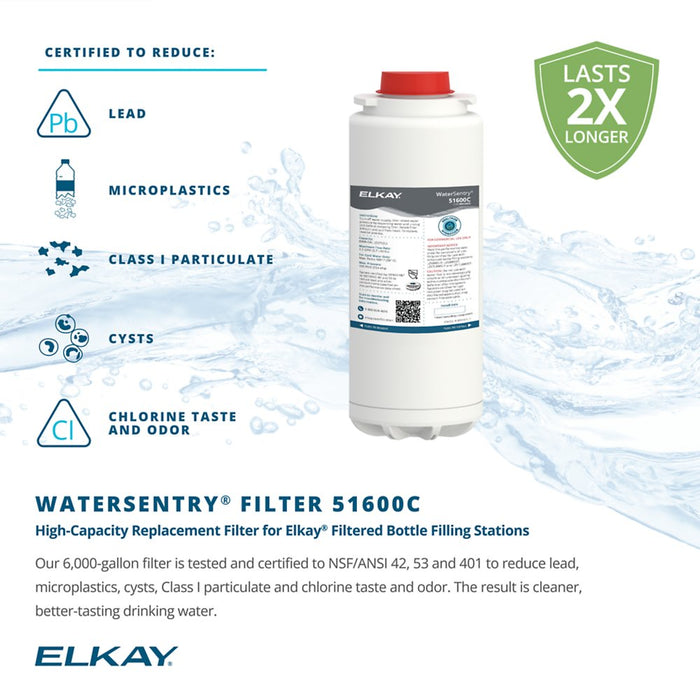

✓ NSF-Certified Filtration – 6,000-gallon filter removes lead, chlorine, microplastics, and more
✓ Easy Front-Access Filter Changes – Drop-down wrapper design swaps filters in under a minute
✓ Hands-Free Bottle Filler – Sensor-activated with automatic shut-off
✓ ADA-Compliant Design – Push-bar fountain and bottle filler accessible to all users
✓ Green Ticker™ – Displays plastic bottles saved in real time
✓ Flexi-Guard Safety Bubbler – Antimicrobial, injury-resistant, and splash-free
✓ Blue LED Filter Status – Visual alerts for timely replacements and peace of mind

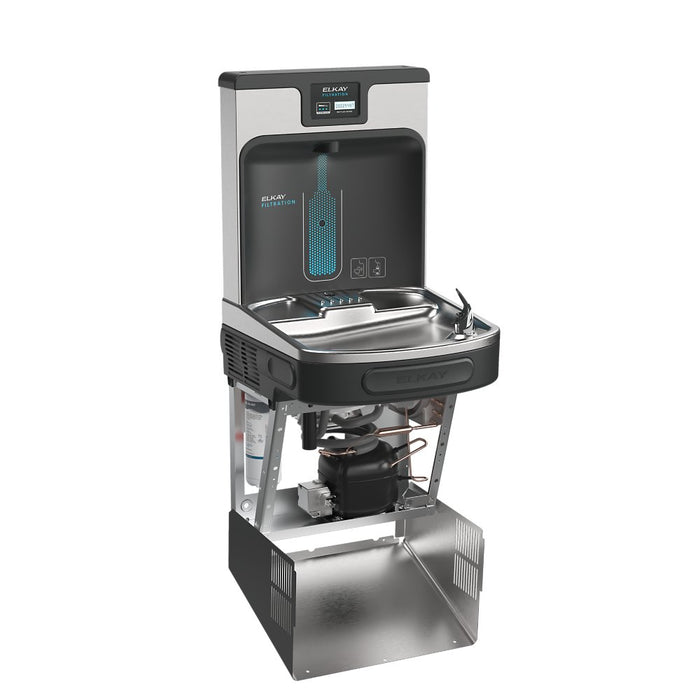

✓ Energy-Efficient Cooling – Hermetically sealed refrigeration delivers 8.0 GPH
✓ Indoor Rated – Ideal for lobbies, gyms, schools, corporate offices
Specifications
| Feature | Details |
|---|---|
| Brand | Elkay |
| Model Number | LZS8WSMP-W1 |
| Type | Connected Bottle Filling Station with Refrigerated Cooler |
| Number of Stations | 1 (Bottle Filler + Single Fountain) |

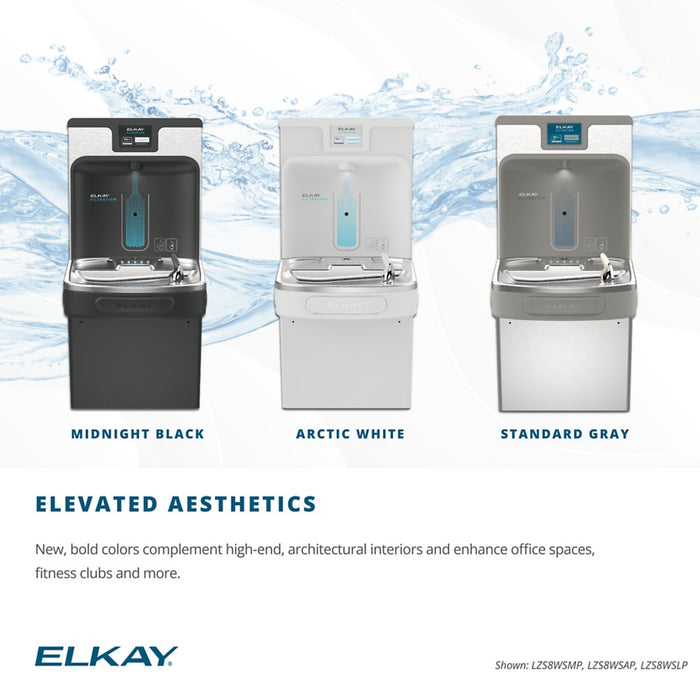

| Material | Stainless Steel with Midnight Black Finish |
| Activation | Sensor (Bottle Filler), Push Bar (Bubbler) |
| Chilling Capacity | 8.0 GPH (Gallons Per Hour) |
| Filtered | Yes – NSF 42, 53, 61, 372, and 401 Certified |
| Filter Life | 6,000 Gallons |
| Power Supply | 115V / 60Hz |
| Mounting Option | Wall Mount (On Wall) |
| Installation Location | Indoor |
| Dimensions | Length: 18-3/8 inches, Width: 19 inches, Height: 39-7/16 inches |
| Shipping Dimensions | Length: 20-1/2 inches, Width: 19-11/16 inches, Height: 29 inches |
| Shipping Weight | 85 lbs |
| Included With Product | Bottle Filler, Water Cooler, Filter |
| Certifications | ADA, ICC A117.1, NSF 42, 53, 61, 372, 401, UL 399, GreenSpec, ASME A112.19.3, CSA B45.4, CAN/CSA C22.2 No. 120, FCC & ISED |
| Country of Origin | USA |
| Ideal For | Corporate Offices, Schools, Fitness Centers, Government Facilities |
Warranty
Elkay offers a 5-Year Limited Warranty on the refrigeration system and a 1-Year Limited Warranty on all other components. For full details, refer to Elkay’s official documentation.
