Product Description

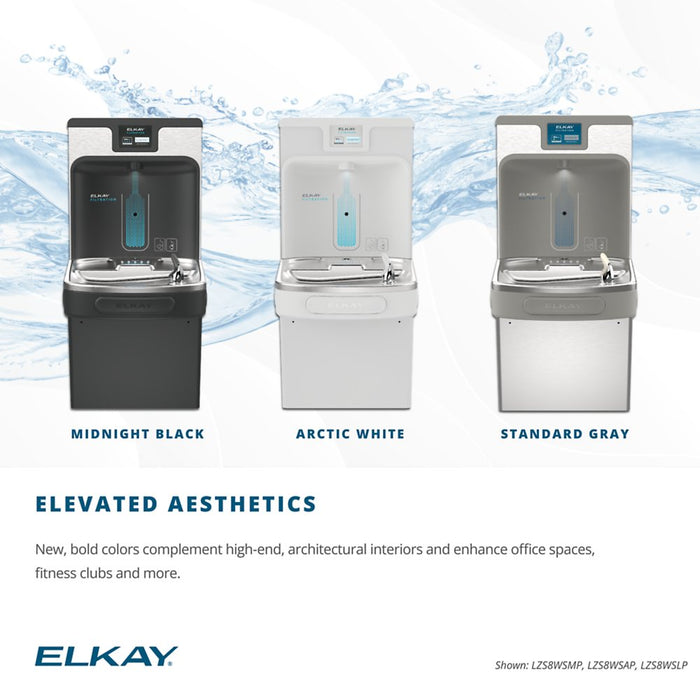

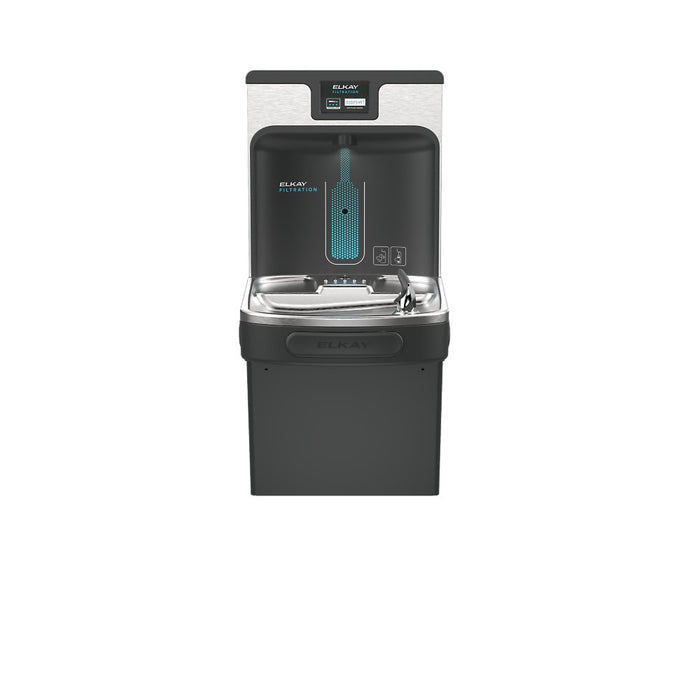

The Elkay LZS8WSMP isn’t just a hydration upgrade—it’s a long-term investment in health, safety, and sustainability. This sensor-activated bottle filler with an ADA-compliant drinking fountain delivers clean, chilled water while reducing lead, PFAS (PFOA/PFOS), chlorine, and microplastics—all in a bold midnight black finish made to elevate high-traffic indoor spaces.
The built-in 6,000-gallon WaterSentry® filter is NSF-certified and features an intuitive LED filter monitor so you always know when it’s time to replace. When you do, the drop-down wrapper design lets you swap it out in seconds. No tools. No downtime. This model is also connected-ready, allowing you to enable remote tracking and monitoring with an optional accessory.
From offices to gyms to schools—this unit helps you deliver confidence, cleanliness, and cold water on demand.

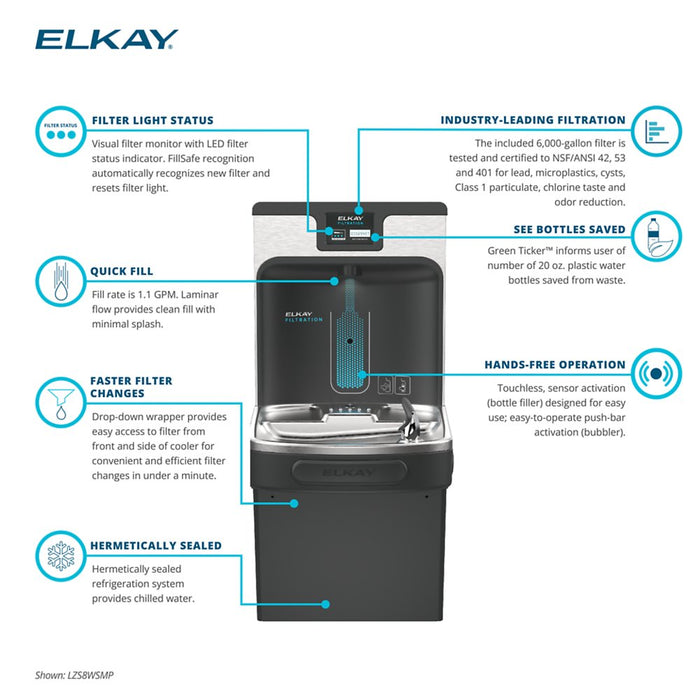

Features

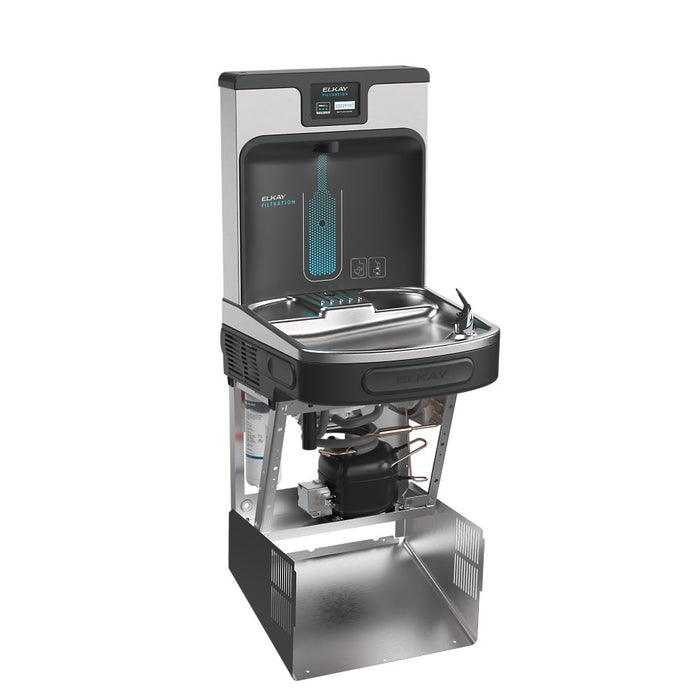

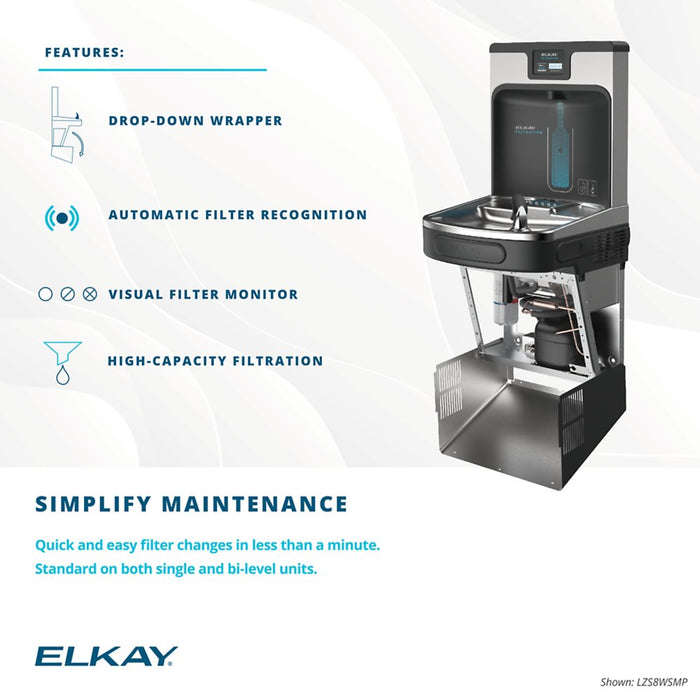

✓ Quick Filter Access – Drop-down wrapper allows tool-free filter changes in under a minute
✓ NSF-Certified 6,000-Gallon Filter – Removes lead, PFAS, chlorine, microplastics, and more
✓ Sensor-Activated Bottle Filler – Hygienic touchless design with automatic shut-off
✓ ADA-Compliant Water Cooler – Push-bar bubbler with Flexi-Guard safety mouthpiece
✓ Hermetically Sealed Chiller – Delivers 8.0 GPH of cold, refreshing water
✓ Blue LED Filter Monitor – Displays real-time filter capacity and resets automatically
✓ Green Ticker™ – Tracks number of plastic bottles saved from waste
✓ Antimicrobial Safety Bubbler – Reduces spread of germs while protecting against injury
✓ Real Drain System – Prevents standing water and bacteria buildup
✓ Connected-Ready – Supports optional remote dashboard and usage monitoring (sold separately)
Specifications
| Feature | Details |
|---|---|
| Brand | Elkay |
| Model Number | LZS8WSMP |
| Type | Wall-Mounted Bottle Filling Station with ADA Cooler |
| Number of Stations | 1 (Bottle Filler + Single Fountain) |
| Material | Stainless Steel with Midnight Black Finish |
| Activation | Sensor (Bottle Filler), Push-Bar (Bubbler) |
| Chilling Capacity | 8.0 GPH (Gallons Per Hour) |
| Filtered | Yes – NSF 42, 53, 61, 372, 401 Certified |
| Filter Life | 6,000 Gallons (71300C Filter) |
| Power Supply | 115V / 60Hz |
| Mounting Option | Wall Mount (On Wall) |
| Installation Location | Indoor |
| Dimensions | Length: 18-3/8 inches, Width: 19 inches, Height: 39-7/16 inches |
| Shipping Dimensions | Length: 20-1/2 inches, Width: 19-11/16 inches, Height: 29 inches |
| Shipping Weight | 85 lbs |
| Included With Product | Bottle Filler, ADA Cooler, Filter |
| Certifications | ADA, ICC A117.1, NSF 42, 53, 61, 372, 401, UL 399, FCC & ISED, ASME A112.19.3, CSA B45.4, CAN/CSA C22.2 No. 120 |
| Country of Origin | USA |
| Ideal For | Offices, Schools, Fitness Facilities, Indoor Public Spaces |
Warranty
Elkay offers a 5-Year Limited Warranty on the refrigeration system and a 1-Year Limited Warranty on all other components. For full details, refer to Elkay’s official documentation.
