Product Information

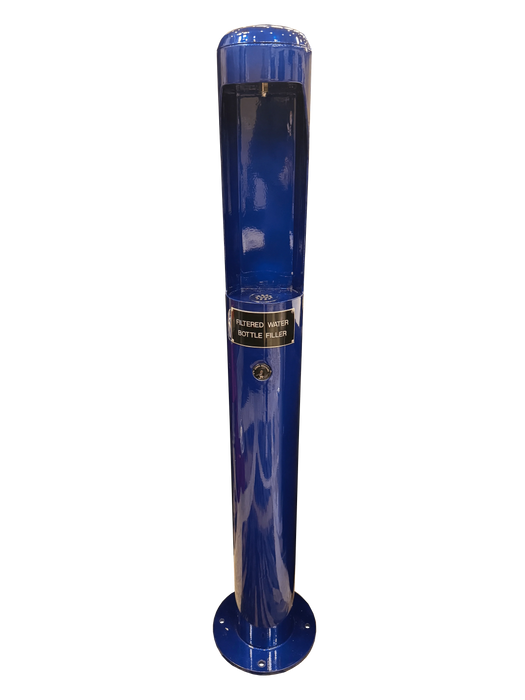

The 7325 Series is a standalone pedestal bottle filler designed to provide filtered water for reusable bottles. Ideal for parks, schools, office buildings, and public spaces, this unit promotes environmentally friendly hydration while ensuring long-lasting durability and vandal resistance.
Built with heavy-duty steel construction, the in-ground bury or surface-mounted option makes it a versatile choice for both permanent and temporary installations.
Features
✓ Dedicated bottle filler station – Easy access to filtered water for reusable bottles.
✓ Heavy-duty construction – One-piece steel pipe with welded steel plates for durability.
✓ Vandal-resistant access panels – Prevents tampering while allowing easy maintenance.
✓ Adjustable flow regulation – Maintains steady water pressure.
✓ Replaceable in-line water filter – Ensures clean and safe drinking water.
✓ In-line mesh screen strainer – Filters debris for better water quality.
✓ Weather-resistant finish – Standard woodland green powder coat, with optional stainless steel (-SS) and other colors available.
✓ Secure drainage system – 1-1/4” IPS waste pipes included for proper water disposal.
✓ Multiple installation options – Available as an in-ground bury or surface-mounted model.
Available Model
7325 – Single pedestal bottle filler station
Specifications
| Feature | Details |
|---|---|
| Material | Heavy-duty steel pipe with 1/8" (3.2 mm) wall thickness |
| Finish Options | Woodland green powder coat (optional stainless steel -SS and other colors available) |
| Mounting Type | In-ground bury or surface-mounted plate welded to pedestal |
| Surface Requirements | Must be installed on a dry, level surface |
| Drainage | 1.25-inch (32 mm) IPS waste pipes included |
Available Model & Dimensions
| Model | Type | Height | Diameter | Mounting Type |
|---|---|---|---|---|
| 7325 | In-Ground Bury or Surface Mount | 59 inches (150 cm) | 6.63 inches (17 cm) | In-ground or surface-mounted plate |
⚠ Note: All dimensions may vary by ± 1/4″ (6 mm).
