Product Description

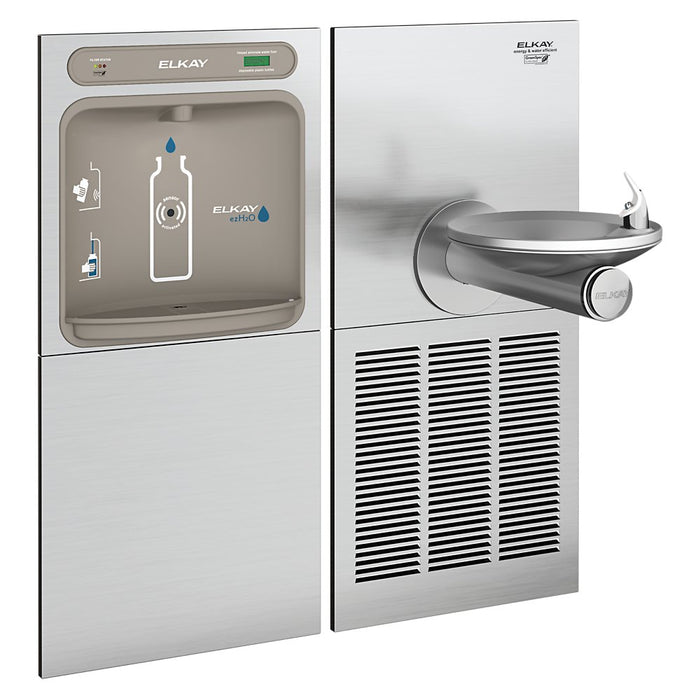

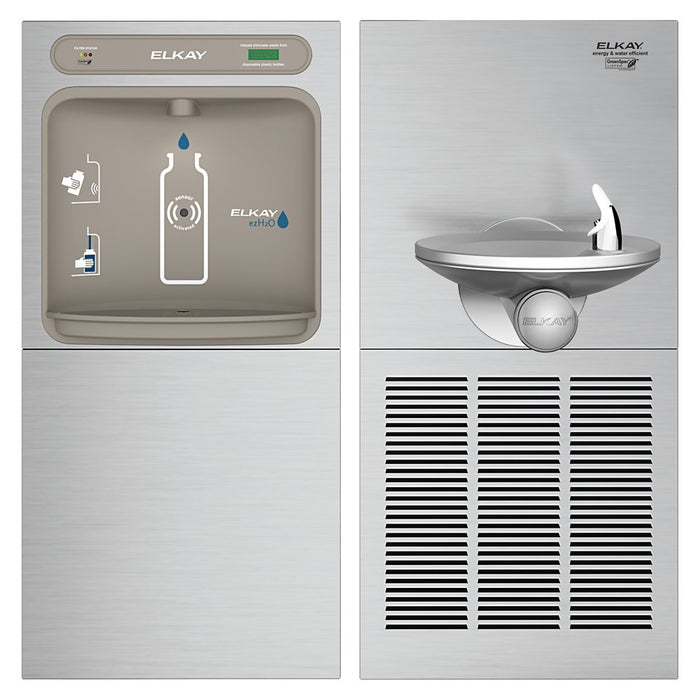

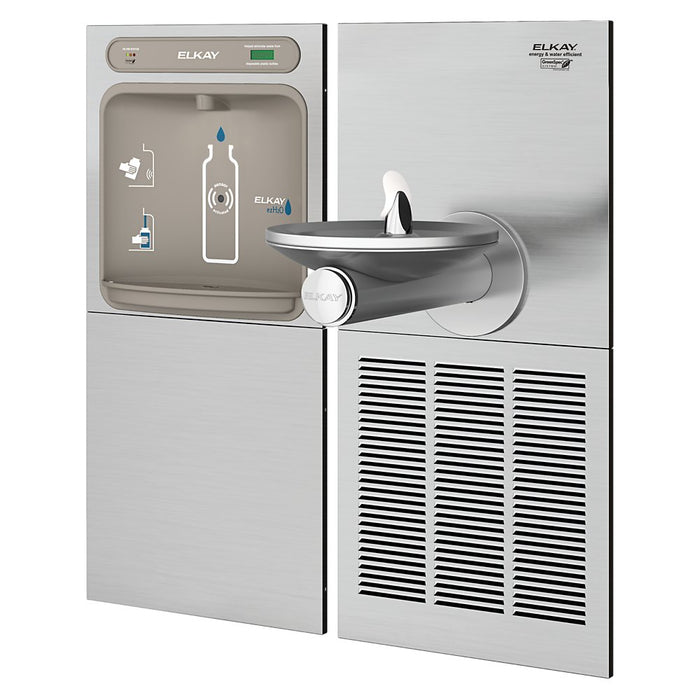

If you're upgrading a modern facility, don't settle for outdated hydration. The Elkay LZWS-SFGRN8K combines elegant SwirlFlo® fountain design with a touchless, sensor-activated bottle filler, NSF-certified filtration, and chilled water delivery—all in a fully recessed ADA-compliant unit that looks as good as it performs.
With real-time Green Ticker™ tracking, antimicrobial protection, and high-efficiency cooling, this two-in-one solution gives your guests, students, or staff filtered water at the touch of a bottle. It’s whisper-quiet, energy-saving, and engineered for heavy use—a serious upgrade for any premium indoor environment.
When your building demands form and function, this is the hydration station that delivers both.
Features
✓ Recessed SwirlFlo® Design – Sleek, curved stainless steel design adds a premium feel
✓ Touchless Bottle Filling – Sensor-activated with a 20-second auto shut-off
✓ ADA-Compliant Access – Bottle filler and fountain meet federal accessibility standards
✓ High-Efficiency Refrigeration – Uses less power without sacrificing chilled output

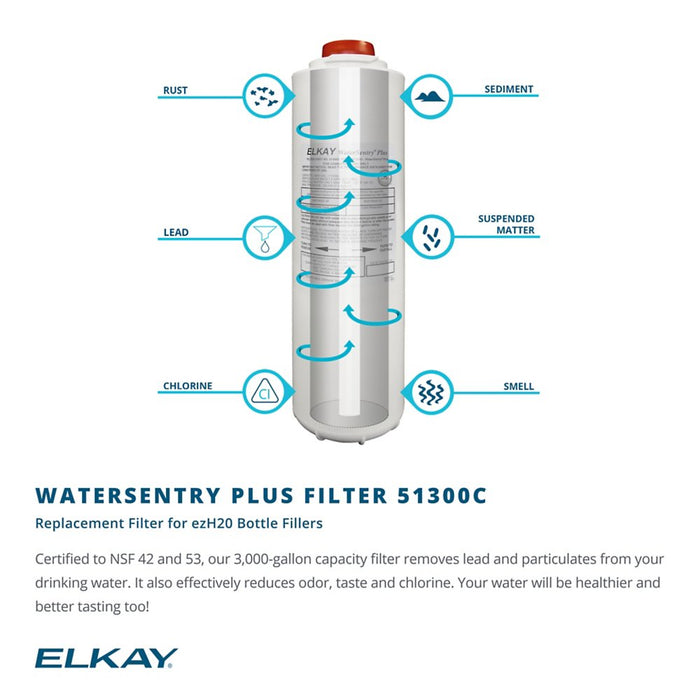

✓ NSF-Certified Filtration – 3,000-gallon capacity reduces lead, chlorine, and particles
✓ Flexi-Guard StreamSaver™ Bubbler – Antimicrobial, injury-resistant, and water-saving
✓ Antimicrobial Protection – Silver ion-treated components resist mold and mildew
✓ Laminar Flow Output – Smooth stream reduces splashing
✓ Visual Filter Monitor – LED status light shows when filter needs replacement
✓ Real Drain System – Eliminates standing water and bacteria buildup
Specifications
| Feature | Details |
|---|---|
| Brand | Elkay |
| Model Number | LZWS-SFGRN8K |
| Type | Recessed Bottle Filling Station with Refrigerated Fountain |
| Number of Stations | 2 (Bottle Filler + Single Fountain) |
| Material | Stainless Steel |
| Activation | Sensor (Bottle Filler), Push Button (Fountain) |
| Chilling Capacity | 8.0 GPH (Gallons Per Hour) |
| Filtered | Yes – NSF 42 & 53 Certified |
| Power Supply | 115V / 60Hz |
| Mounting Option | Wall Mount (In-Wall Frame) |
| Installation Location | Indoor Only |
| Dimensions | Length: 39-1/2 inches, Width: 19 inches, Height: 40-13/16 inches |
| Shipping Dimensions | Length: 28-1/4 inches, Width: 75-15/16 inches, Height: 46 inches |
| Shipping Weight | 130 lbs |
| Included With Product | Bottle Filler (LZWSMDC), Fountain (ERPBGRND8C), Chiller (ECH8GRN), Filter (EWF3000), Mounting Frames (MF100, MFWS100) |
| Certifications | ADA, ICC A117.1, NSF 42, 53, 61, 372, 401, UL 399, GreenSpec, ASME A112.19.3, CSA B45.4, CAN/CSA C22.2 No. 120 |
| Country of Origin | USA |
| Ideal For | Corporate Buildings, Universities, Healthcare Facilities, Indoor Public Spaces |
Warranty
Elkay offers a 5-Year Limited Warranty on the refrigeration system and a 1-Year Limited Warranty on other components. For full coverage terms, see Elkay’s official documentation.
