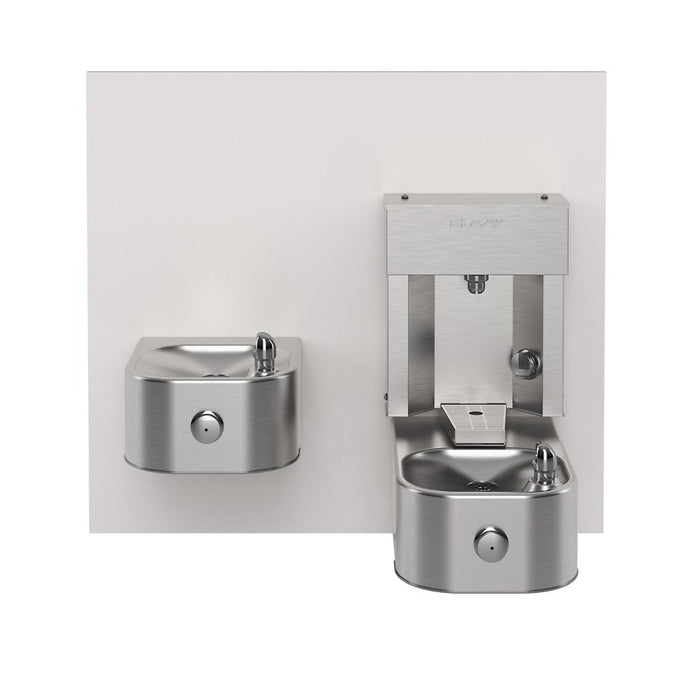

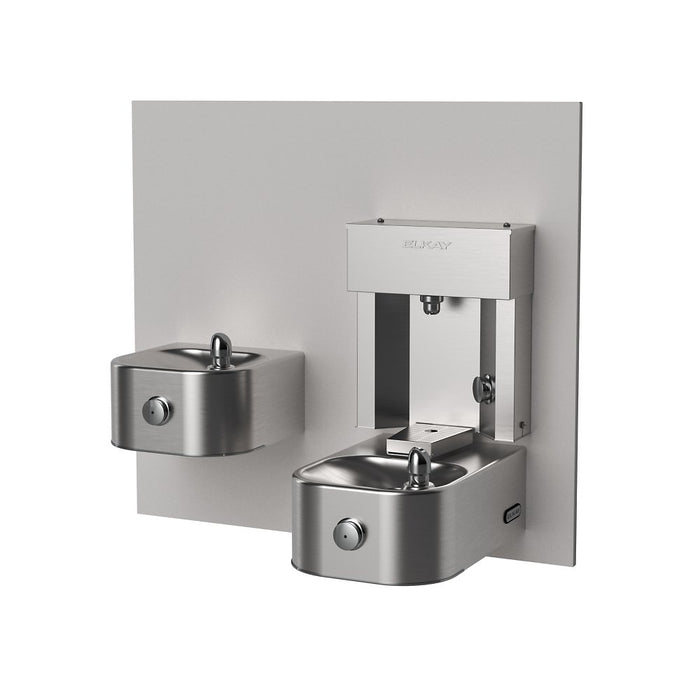

The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Fully recessed in-wall design. Vandal-resistant fountain and bottle filling station in a consolidated space saving ADA compliant design.

Specifications

• Material: Stainless Steel

• Number of Stations: 2

• Features:

  • Ambient Water

  • Includes Back Plate

  • Laminar Flow

  • Mechanically Activated

  • New Offering

  • Vandal Resistant

• Power: No Electrical Required

• Dimensions:

  • Length: 38-1/2"

  • Width: 19-3/8"

  • Height: 34-5/8"

• Bubbler Style: Vandal Resistant

• Mounting Option: Wall Mount (In-Wall Frame/Plate)

• Chilling Capacity: Non-refrigerated

• Installation Location: Indoor + Outdoor

• Application Type: Classroom

• Shipping Dimensions:

  • Length: 41"

  • Width: 45-1/4"

  • Height: 38"

• Shipping Weight: 118 lbs

• Included with Product:

  • Bottle Filler (VRCSM214C)

  • Fountain Only (EDFPV217LSM-NF)

  • Wall Plate (WSMP20)

• Ships In Multiple Boxes: Yes

• Family: Soft Sides®

• ADA Compliant: Yes

• Filtered: No

• Code Compliance (Drinking Solutions):

  • NSF 372 (Lead Free)

  • NSF 61

  • ASME A112.19.3 / CSA B45.4

  • ADA & ICC A117.1

• Note: Access Panel (Part number ACCESS12X38-5) is recommended for installations with no rear access

Features

• Mechanical push button design, for areas where electric is not available.
• Vandal-resistant, push-button activation for both the bottle filler and the water fountain.
• No additional drain is needed for the bottle filler.
• Fill rate is 1.0 GPM.
• Laminar flow provides clean fill with minimal splash.
• Kit includes mounting wall plate
• Vandal-resistant bubblers feature chrome-plated integral hood guard to prevent contamination from other users, airborne deposits and tampering.
• Rated for indoor and outdoor use.
