Product Information
Where sleek design meets unmatched toughness. The 5300 Series delivers clean, accessible hydration in high-traffic areas without sacrificing style or strength. Whether you choose the front-mount (5300) or rear-mount (5305) configuration, this unit is made to perform in public spaces that demand both aesthetics and resilience.
Constructed from heavy-duty stainless steel with vandal-resistant components, it’s built to endure harsh weather, constant use, and even freezing temperatures with the frost-proof upgrade.
Key Benefits
✓ ADA compliant – Fully accessible for users of all abilities
✓ Rugged steel construction – One-piece pipe with welded plates for lasting performance
✓ Vandal-resistant design – Recessed access panels and push-button valve prevent tampering
✓ Reliable push-button control – Chrome-plated brass valve resists damage
✓ Consistent water pressure – Adjustable flow regulator ensures steady performance
✓ Impact protection – Steel bubbler guard shields against vandalism or misuse
✓ Reinforced back plate – Stainless steel adds structure and visual appeal
✓ Weather-resistant finish – Woodland green powder coat standard, with stainless and custom options
✓ Frost-proof option (-FP) – Prevents freezing and keeps water flowing year-round
✓ Secured water shutoff – 1/2” IPS lock shield stop prevents unauthorized access
✓ Built-in drainage system – Includes 1-1/4” IPS waste pipe for proper disposal
Available Models

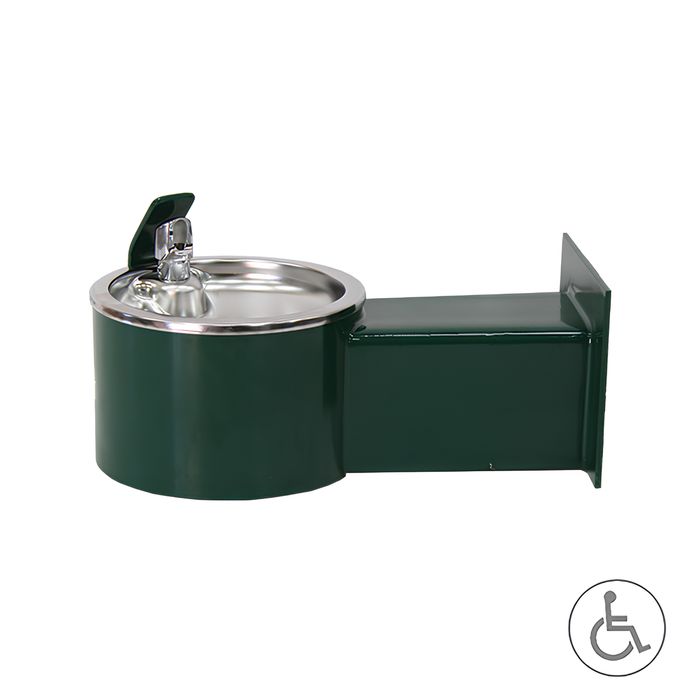

5300 – Front mount wall drinking fountain
5300-FP – Frost proof front mount wall drinking fountain
5305 – Rear mount wall drinking fountain
5305-FP – Frost proof rear mount wall drinking fountain
Specifications
| Feature | Details |
|---|---|
| Material | Heavy-duty steel pipe with 3/16" (4.8 mm) wall thickness |
| Finish Options | Woodland green powder coat (optional stainless steel -SS and other colors available) |
| Mounting Type | Wall-mounted with included plate |
| Surface Requirements | Must be installed on a dry, level surface |
| Drainage | 1.25-inch (32 mm) IPS waste pipes included |
| Water Supply | 0.5-inch (12.7 mm) IPS lock shield screwdriver stop |
Available Models & Dimensions
| Model | Type | Height | Length | Mounting Type |
|---|---|---|---|---|
| 5300 | Wall-Mounted Model | 8 inches (20 cm) | 20 inches (51 cm) | Wall-mounted plate |
| 5305 | Wall-Mounted Model | 8 inches (20 cm) | 20 inches (51 cm) | Wall-mounted plate |
⚠ Note: All dimensions may vary by ± 1/4″ (6 mm).
Must-Read
Stern-Williams Products Are Made-to-Order and Highly Customizable [Click here]
Need your fountain faster? Check out our Quick Ship Fountain Program [Click here] for quicker delivery options.
Stern-Williams Policies
- Warranty
- RGA Policy
- Custom Order Policy & Procedures
- Drinking Fountain & Shower Tower Cancellation Policy
- ADA Compliance
- ACA Compliance
Downloads
General IOM for Outdoor Water Products
